Console Radios

Console radios require the buyer to arrange the shipping and packing and all charges. For questions about our radios, or if you want to buy one, go to the Contact page in the menu above and e-mail me.

One click on the picture opens it up.

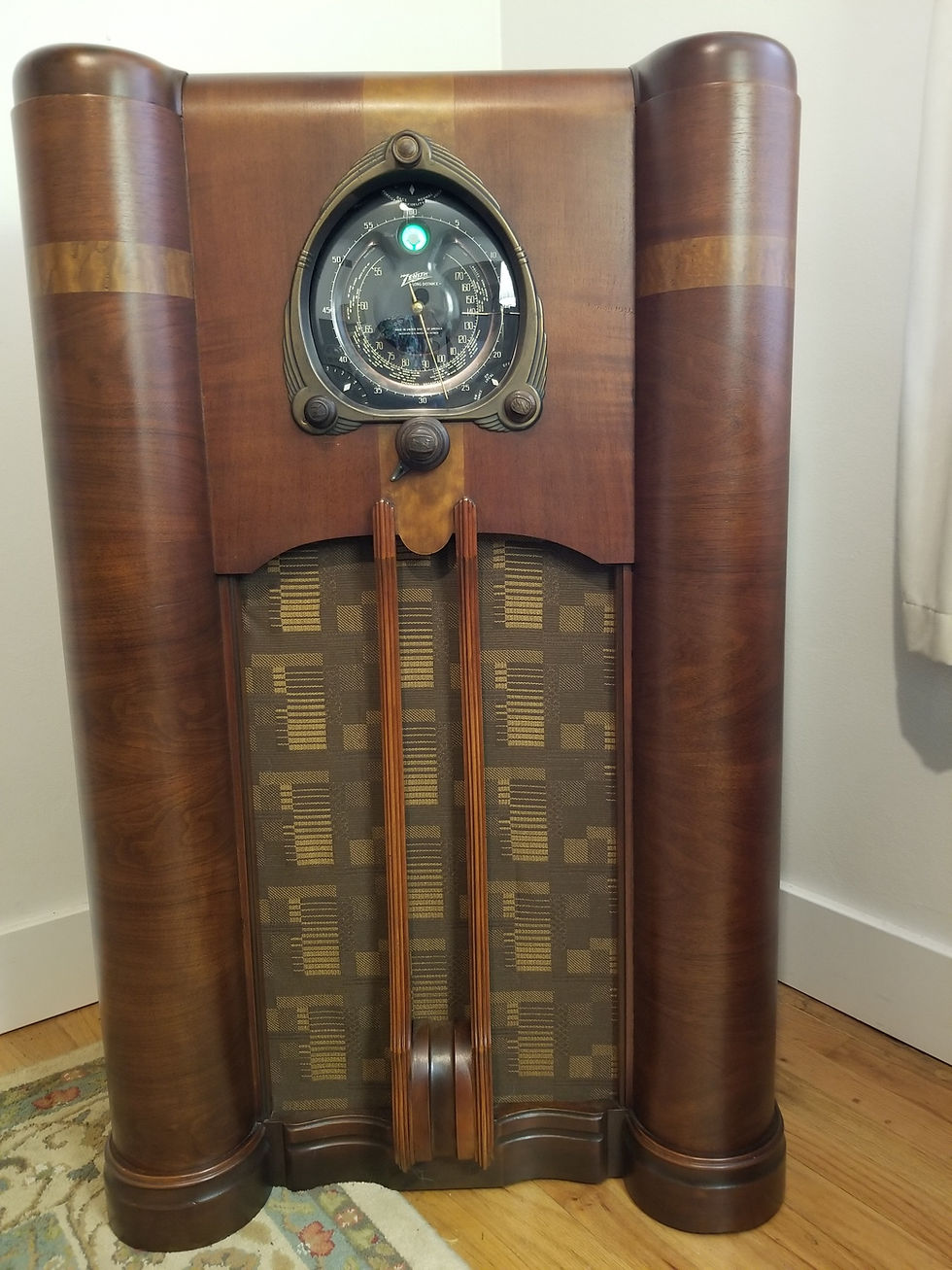

Zenith 9S262 (2024)

  • Manufactured in 1938

  • This is a top of the line radio

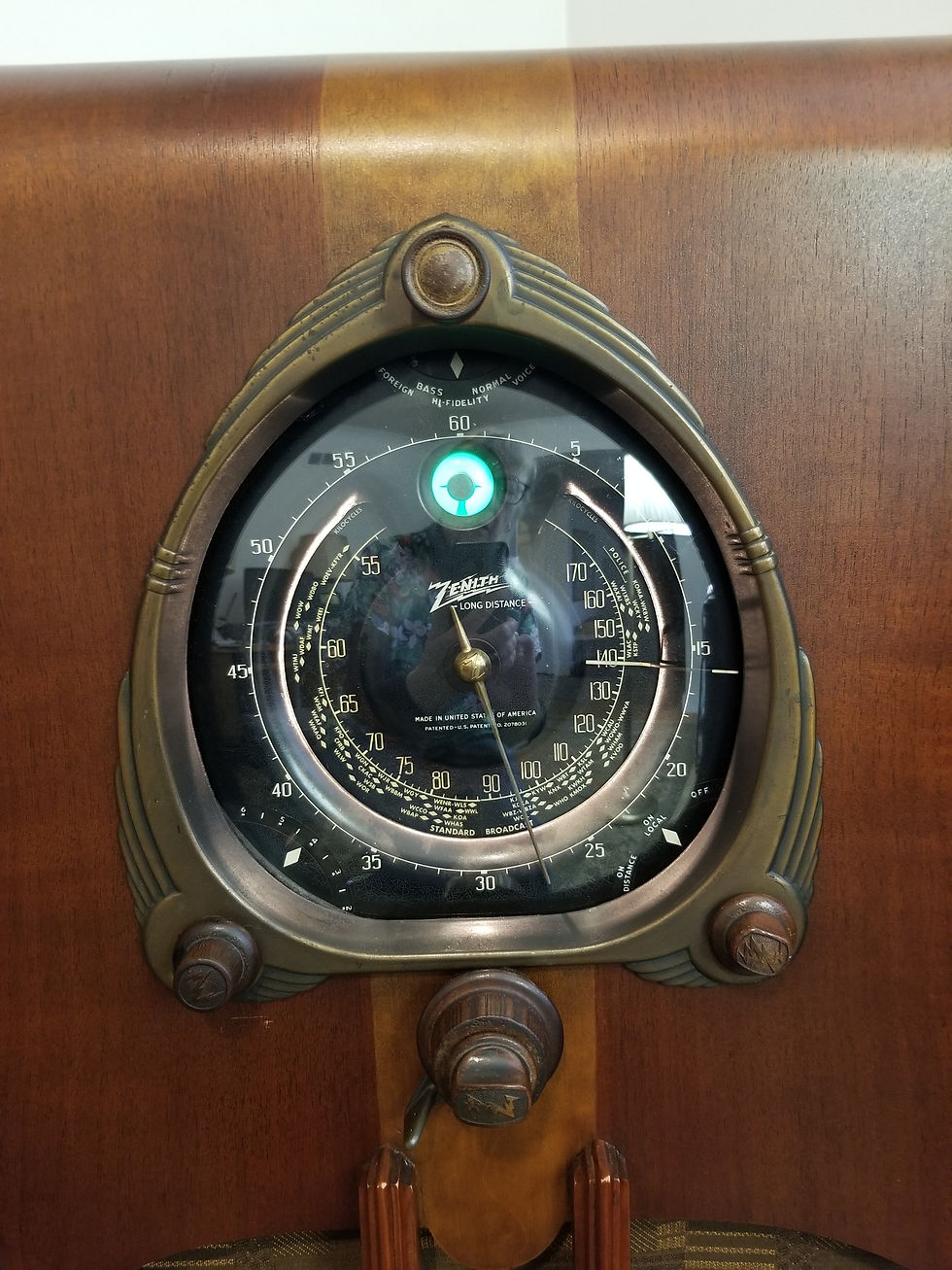

  • Robot dial, motorized dial pointer rotation

  • Shutter dial, display changes with the selected band

  • Zenith weighted flywheel, large tuning dial

  • 9 Tubes 6K7, 6L7, 6J5, 6k7, 6T5, 6F5, 6F6, 5Y4

  • Electro Magnetic Dynamic LS 12"

  • Power out 4.5 Watts

  • Standard broadcast (AM), police, and shortwave bands

  • All restored to original condition

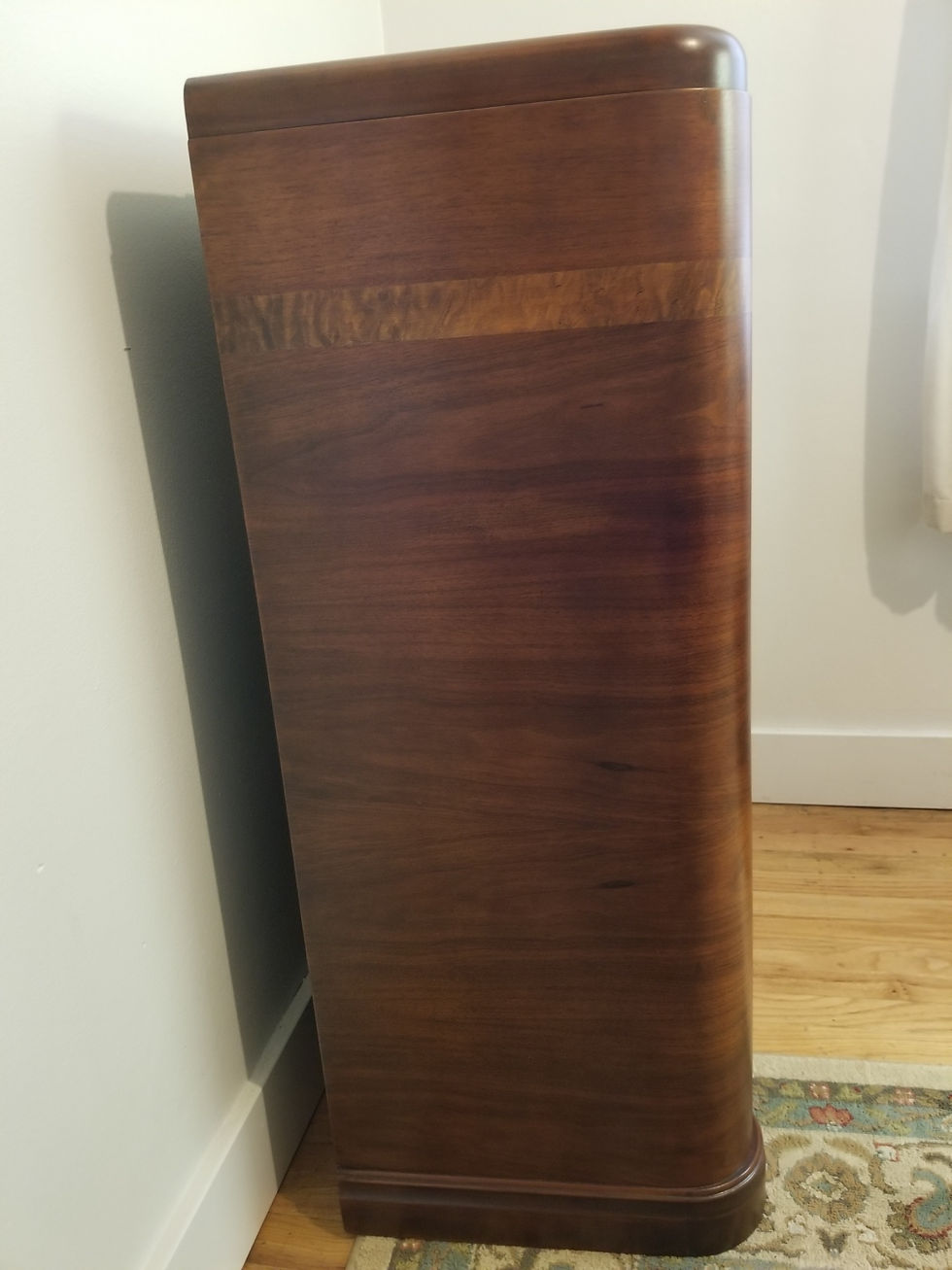

  • Cabinet completely restored

  • New period speaker cloth

  • Dimentions 42x26.9x16.8 in.

  • Weight 71lb.



     Radio Museum Info

​​

​​

​​
​
$1500
Zenith Frankenstein
(solid state replaced radio)
​

  • Replaced Console Model: 9H885 Ch= 9E21 - Zenith Radio Corp.; Chicago

  • Number of Tube 9 radio with:

  • (Stereo radio and speakers)

  • Replaced tube radio with an Emerson BW231 AM/FM/CD solid state radio

  • Details CD player (looks like a 45 rpm record in the record as it plays)

  • Installed inside the wooden case from the Zenith 9H855 radio

  • Replaced the old electro-magnetic speaker with stereo speakers in cabinet

  • Dimentions 42x26.9x16.8 in.

  • Weight 71  lb.​



  Zenith 9H855 old wooden case used from this radio

   https://www.radiomuseum.org/r/zenith_9h885_ch9e21.html#google_vignette

​​

​​
​
$250
Philco 91X console (2024)
​​

  •  Technical Specifications Manuf. date 1933

  • Number of Tubes 9

  • Valves / Tubes 44, 36, 44, 37, 37, 37, 42, 42, 80

  • Main principle: Superhet with RF-stage; ZF/IF 260 kHz

  • Wave band: Broadcast (Medium Wave) 55-1700 KHz

  • Power type and voltage: Alternating Current supply (AC) / 115 Volt

  • Loudspeaker: Dual Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

  • Wooden case

  • Info from Radiomuseum.org

  • Model: 91X [Late] - Philco, Philadelphia Stg. Batt

  • Shape: Console with dual speaker slant face

  • Notes

  • The model 91 series uses a 9-tube chassis in a variety of different cabinet styles. There are three chassis types depending on power requirements: 91 (115 VAC 50-60 Hz), 91A (115 VAC 25-40 Hz), and 91E (230 VAC 50-60 Hz). Early versions of the chassis are single band (BC only) and late versions are dual band (BC and 1.5 - 3.2 MHz police band). All versions include a shadow meter (tuning aid) and were among the first to use this feature. On 2-band models, the bandswitch is integrated with the power switch (adding a third position to the switch).

    Model 91X is a floor-type console with inclined sounding board and dual speakers (other models are single speaker). The early version uses the single band chassis and has a large open sounding board. The middle version uses the same cabinet but has the dual band chassis. The late version has the dual band chassis in a new cabinet style with pillars in front of the sounding boarPrice in first year of sale

  • 85.00 $

  • Circuit diagram reference

  • Rider's Perpetual, Volume 3 = 1933 and before

  • Literature/Schematics (1)

  • Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data

  • Dimentions 42x26.9x16.8 in.

  • Weight 71lb.

​

     Radio Museum Info

​​

​​

​​
​
$750​
